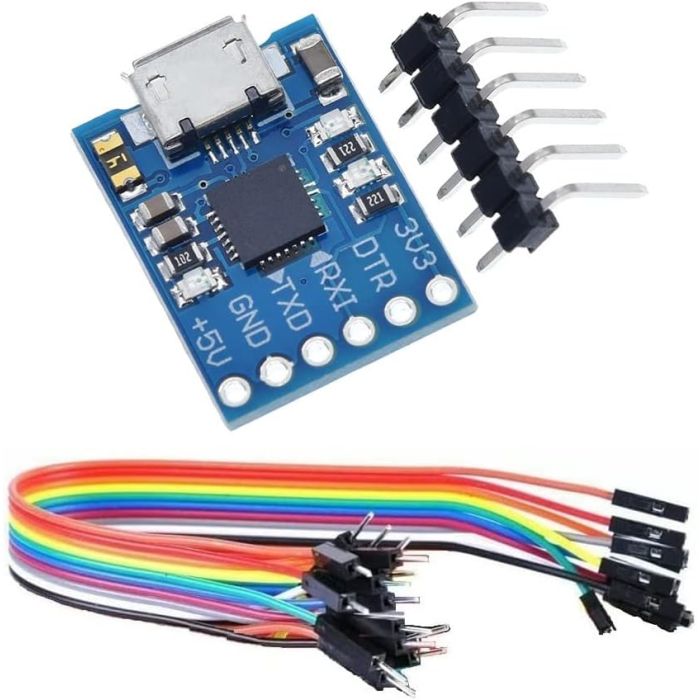

WWZMDiB CP2102 Micro USB to UART TTL Module 6 Pin Serial Converter STC Replace FT232 UART STC Downloader

WWZMDiB CP2102 MICRO USB to UART TTL Module 6 Pin Serial Converter STC Replace FT232 UART STC DownloaderOriginal chip CP2102, generate COM port after installing the driverWorking voltage3.3V-5VStandard inputMICRO MINI-USB cableSupports baud rates from 300bps ~ 1Mbps betweenContaining clock circuit, no external circuit deviceDescription:1. Original chip CP2102, generate COM port after installing the driver.2. Then the standard input MICRO MINI-USB cable connected to the computer USB interface, with 3.3V and 5V two power output3. With a resettable fuse. In the event of accidental short-circuit can effectively protect your device and computer USB port to download4. On-board status indicators, receiving indicator properly installed drive status indicator remains, send and receive indicator flashes when the communication with run LED indicator.5. Support baud rates from 300bps ~ 1Mbps between6. The communication format support: 1) data bits 5,6,7,8; 2) support 1.5, 2 stop bits; 3) odd, even, mark, space, none parity7. Supported operating systems: windows 8.1 / 7 / vista / xp / 98, Mac OS-X / OS-9, Linux8. USB seat MICRO MINI-USB interface Block9. Chip components for the regular company of welding, stable quality, beautiful appearance10. With DTR trigger signal output can be directly arduino pro mini ATMEGA328P and other Arduino board download traffic.Features:1. Embedded USB transceiver, no external circuit device2. Containing clock circuit, no external circuit device3. Contains power-on reset circuit4. The on-chip voltage regulator within the 3.3V output5. Meet the USB2.0 specification requirements6. SUSPEND pins support USB suspend state7. Asynchronous serial data bus compatible with all handshakes and modulation controller interface signals8. Support data format is 8 data bits, 1 stop bit and the parity bit9. Connotation 512 byte receive buffer and 512 byte transmit buffer10. Supports hardware or X-ON / X-OFF HandshakePackage included:1Pcs CP2102 MICRO USB to UART TTL Module1Pcs 6Pin Bend pin header10Pin 21cm/8 in Male to Female Jumper Wires.
